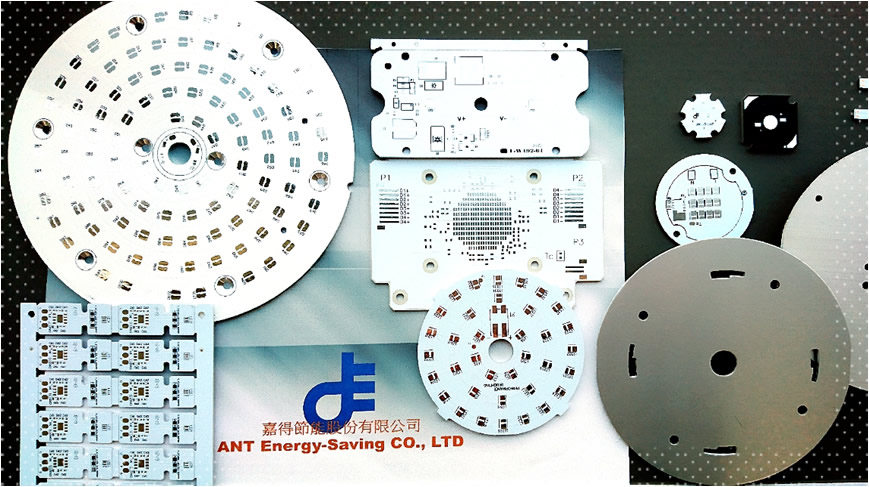

鋁基板(單面/雙面/雙層）
厚度 |
0.8mm |
1.0mm |
1.5mm |
1.6mm |
2.0mm |
3.0mm |
|
||
銅箔 |
1oz |
2oz |
3oz |
6oz |
供應尺寸 |
最長尺寸1500mm |
|
||
Type |
Thermal Conductivity (w/m-k) (ASTM5470) |
Heat Resistance (℃/W) |
BreakDown Voltage (KV) |
Tg (℃) |
Td (℃) |
Thermal Stability (260℃/5 sec. /Solder float) |
Thermal Stability (260℃/Ovenware) |
Peel Strength (lb/in/IPC TM650) |
Flame-ability (UL94) |
Thermal Shock (-40~150℃) |
Volume Resistivity |
Surface Resistivity |
Conefficient of Thermal Expansion (m/℃) |
R110 |
1.0 |
≦0.30 |
AC≧1.5 |
130 |
310 |
≧3 times |
≧20 min |
≧10 |
V-0 |
>50 cycles |
1.7X1015 |
4.5X1012 |
6.3X10-6 |
R210 |
2.0 |
≦0.20 |
AC≧2.0 |
130 |
340 |
≧3 times |
≧20 min |
≧10 |
1.7X1015 |
4.5X1012 |
6.1X10-6 |
||
R220 |
2.0 |
≦0.20 |
AC≧4.0 |
130 |
340 |
≧3 times |
≧20 min |
≧10 |
1.7X1015 |
4.5X1012 |
6.1X10-6 |
||
R310 |
3.0 |
≦0.15 |
AC≧2.0 |
130 |
340 |
≧5 times |
≧30 min |
≧10 |
1.2X1015 |
3.3X1012 |
5.6X10-6 |
||
R320 |
3.0 |
≦0.15 |
AC≧4.0 |
130 |
340 |
≧5 times |
≧30 min |
≧10 |
1.2X1015 |
3.3X1012 |
5.6X10-6 |
||
J610 |
6.0 |
≦0.12 |
AC≧2.0 |
130 |
370 |
≧5 times |
≧60 min |
≧10 |
1.0X1015 |
1.0X1013 |
5.6X10-6 |
||
J20 |
10.0 |
≦0.05 |
AC≧2.0 |
130 |
370 |
≧5 times |
≧60 min |
≧10 |
1.0X1015 |
1.0X1013 |
5.6X10-6 |
備註:
1, 耐壓與板材及產品線路設計距離有關
2, 產品試驗數據來源的鋁材標準1.5mm+銅箔厚度1oz
3, 我們可依需求提供客製化規格產品
